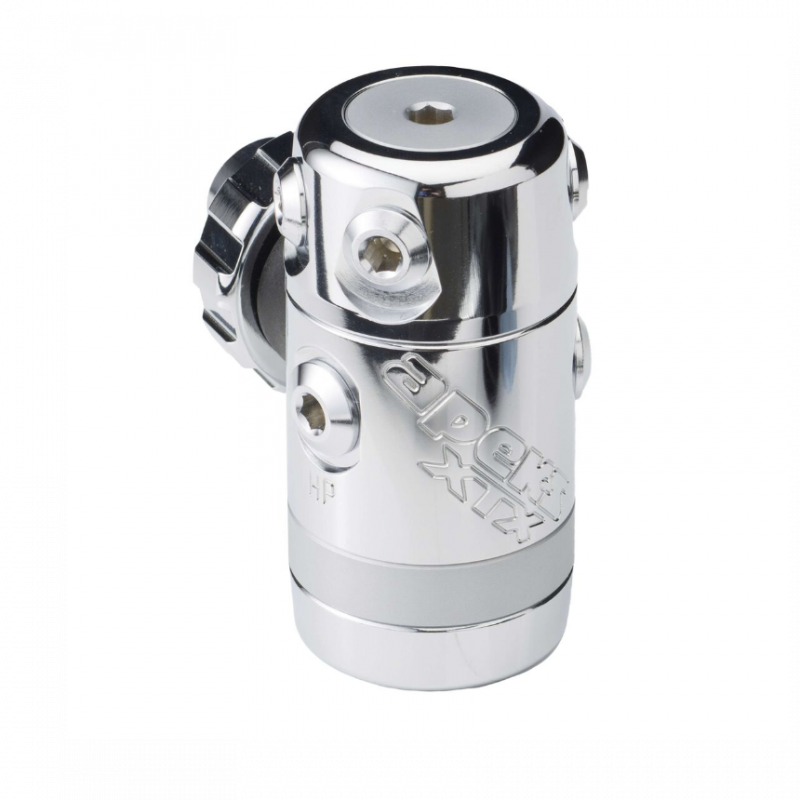

Dry Sealed System with swivel turret (DST),4 MP ports, 3/8" UNF, 2 HP ports 7/16" UNF.
The first stage - the powerhouse of your regulator - reduces the high pressure air stored in your cylinder to a controllable intermediate pressure of about 9.5 BAR. The air then flows along the medium pressure hose to the second stage (demand stage). Apeks manufactures a wide range of first stages to meet the needs of every diver. The DST first stage is one of the world's top 1st stages with proven performance and reliability.
The first stage is of pressure adjustable depth compensated diaphragm design and supplies air at exactly the right pressure. As the diver descends the demand for air increases. To maintain the supply, the intermediate pressure increases in ratio to the water depth. In this dry sealed system, this is achieved by allowing hydrostatic pressure, acting on the diaphragm, to be transmitted to the primary diaphragm via the load transmitter. The 1. Stage comes in the XTX Version with 4x 3/8" mp-
exits.
We deliver the DIN-Version (G5/8") with metal handwheel and a dustcover with 1 backup O-ring.
There also is a 5-Port Version for better hose routing!: http://www.deepstop.de/apeks-stage-p-78.html?language=en
Hab diese Stufe für meine beiden Stages gekauft, nach ausgibigem testen muss ich sagen wow super, durch das sie sich drehen lassen, sind sie wie für das Stage handling gemacht!
Jedem zu empfehlen besonders für die Stageflaschen geeignet!
The new MTX with an innovative first stage design that helps to prevent ice build up around the diaphragm, the MTX-R is reliable, rugged and expedition ready.
