D11K for SF2

69.00€

Tax included

New product

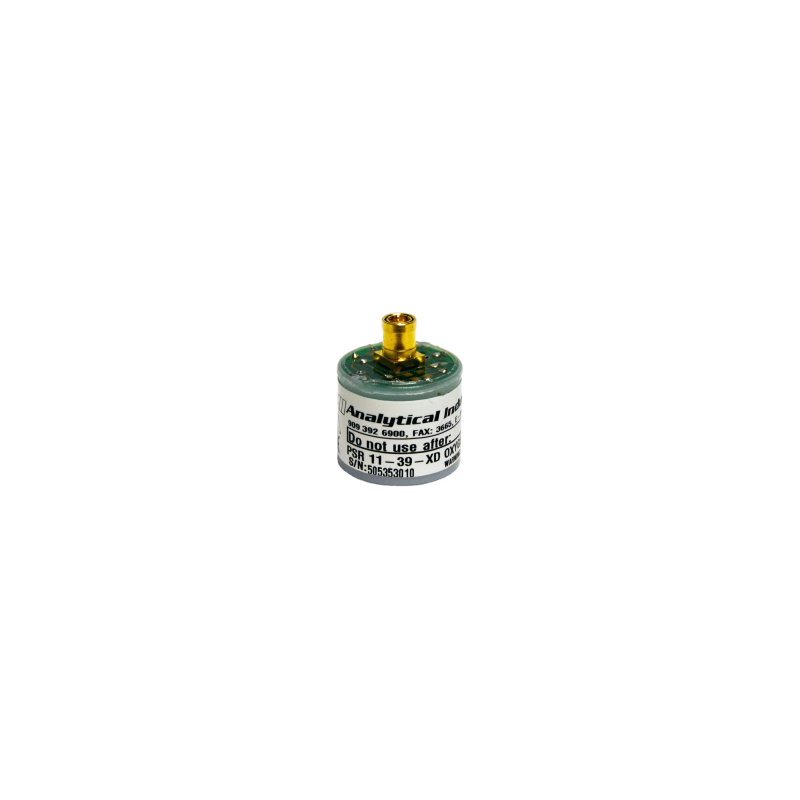

Oxygensensor D11K for SF2

Shipping: 1-5 days

Add to compare

OEM / replacement sensor works as With:

SF2 rebreather
The liability for the use of the sensor underwater is excluded.

Product specification:

Electr. Connection:

gilded
Measuring range: 0 - 100% by volume.
computational life expectancy: more than 500 000. Vol% h.
anticipated life expectancy: less than 3 years @ 20.9% O2
Output: 14.5 to 19.5 mV @ 20.9% O2
Response Time t90: less than 2 sec
Deviation: less than 1% volume O2 / month @ 20.9% O2
Working temperature: 0 - 45 ° C
Air pressure: 600 - 1750 hPa
Linearity deviation: less than 2% @ 100% O2 within 5 minutes
0-point voltage: less than 0,200 mV in 100% N2, within 5 minutes
Influence by humidity: -0.03% rel. O2 reading per% RH
Empfohlender resistance: -
Temperature compensation: -
Influences: not by He, H2 and CO


Storage conditions:


Recommended temperature range: 5 - 30 ° C
Maximum temperature range: -20 - 50 ° C
Ambient pressure: 600 - 1750 hPa
Humidity: up to 100% rel. F.
Storage time: less than 6 months
Weight: 20 g
used materials: PA, PPS, PTFE, stainless steel
Warranty: 12 months
Color White case
All figures are based on 25 ° C, 50% rel. H. and 1013 mbar air pressure
